LiftMaster 98022 Vs. 8500W: Which Wall-Mount Opener Should You Actually Buy?

I wanted to settle the choice between the LiftMaster 98022 and the 8500W once and for all after watching too many homeowners get stuck with the wrong wall-mount opener.

This article walks through every practical difference, real-world performance detail, and ownership experience so you can pick the model that actually fits your garage and daily life.

Key Differences between the LiftMaster 98022 and 8500W

• Design and aesthetics The 98022 shows a cleaner, more modern profile. LiftMaster dropped the older boxier housing and the red accent pieces that marked the 8500W. The new unit sits flatter against the wall and looks intentional rather than industrial. If your garage doubles as a workshop or you simply prefer a less bulky look when you walk in, the visual upgrade is noticeable every single day.
• Cable tension monitoring This is the single biggest practical change. The 8500W used an external cable tension monitor that sometimes triggered false reverses on windy days or when the door settled slightly. The 98022 removes that external piece entirely. Installation becomes simpler and the nuisance trips disappear. I have seen more than a few service calls that existed only because of that older monitor.
• Setup technology Bluetooth joins the built-in Wi-Fi on the 98022. Pairing the myQ app and walking through the initial network connection feels faster and less finicky. The 8500W relied only on Wi-Fi, which worked fine once connected but took more patience during the first setup.
• Availability and support timeline The 8500W is fully discontinued. Parts remain available for a while, yet finding a brand-new unit is already difficult. The 98022 is the active residential wall-mount model, so firmware updates, accessory compatibility, and long-term parts support line up behind it.
• Overall refinement LiftMaster used the changeover to tighten tolerances, improve the plastic cover fit, and refine the logic board. The core lifting power stays identical, yet the newer unit simply feels more polished in daily use.

Also Read: Are Wayne Dalton Garage Doors Worth It?

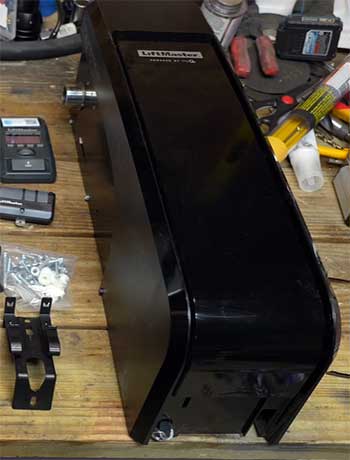

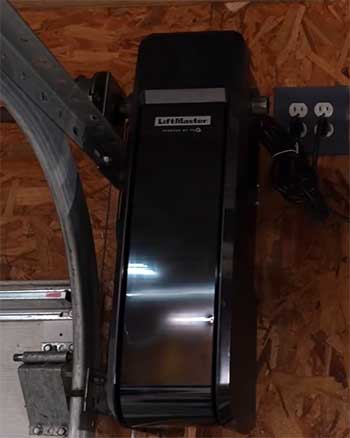

Key Features of The LiftMaster 98022

• Wall-mount jackshaft design The entire motor and drive sit beside the door and turn the torsion bar directly. Your ceiling stays completely clear for storage racks, lighting, or a future car lift. Headroom requirement is only three inches from the center of the torsion bar, which solves low-ceiling and high-lift track problems that defeat traditional rail openers.
• Quiet 12V DC motor with soft start and stop The motor delivers smooth acceleration and deceleration. Vibration that normally travels through ceiling joists is almost eliminated. Bedrooms above the garage stay quieter, and the garage itself no longer echoes with every cycle.
• Integrated battery backup When power fails the battery keeps the door working for multiple open-and-close cycles. You never get trapped outside during a storm or forced to pull the emergency release in the dark.
• Built-in Wi-Fi, Bluetooth, and myQ connectivity Open, close, or check status from anywhere on your phone. Create schedules, receive alerts, and hand temporary access codes to guests or delivery drivers. The system also works with major voice assistants and Amazon Key.
• Automatic garage door lock Once the door reaches the floor a mechanical deadbolt engages. Someone cannot simply force the door open by lifting it. This is real physical security beyond the rolling-code radio system.
• Remote LED lighting and smart control panel A separate high-lumen LED light mounts wherever you need it and turns on with the door or by motion. The wall console includes a motion sensor and timer-to-close settings you can adjust without climbing a ladder.
• Security+ 2.0 rolling code and safety sensors Every remote click uses a new code. Infrared safety sensors reverse the door if anything breaks the beam. Timer-to-close adds another layer so a forgotten open door does not stay that way all night.

Also Read: Differences Between Clopay And Amarr Garage Doors.

Pros of the LiftMaster 98022

• Cleaner installation Without the external cable tension monitor, the mounting process involves fewer brackets, wires, and alignment steps. You spend less time on the ladder and reduce the chance of a sensor getting bumped out of position later. The cleaner wall layout also leaves more room for storage shelves or tool racks right next to the opener.
• Fewer false reverse events The older external monitor sometimes reacted to normal cable movement or temperature changes and reversed the door for no clear reason. Removing it means the door closes more consistently day after day. That reliability matters when you are carrying groceries or when kids are waiting in the driveway.
• Modern appearance The updated housing sits flatter and uses a simple dark finish that blends into most garage walls. It no longer draws the eye the way the bulkier 8500W did. If you keep the garage organized or use it as a secondary living space, the cleaner look contributes to a calmer overall feel.
• Future-proof support As the active residential model, the 98022 continues to receive accessory updates and replacement parts attention. Finding a matching battery, remote, or control panel years from now will be simpler than hunting for discontinued 8500W components.
• Slightly refined electronics Bluetooth pairing shortens the first-time setup, and the latest logic board handles force adjustments more smoothly across seasonal temperature swings. Small improvements like these add up when you open and close the door several times every day.
• Same proven lifting power You keep the identical 850-pound capacity and the same opening and closing speeds. Nothing is sacrificed in raw performance while the refinements improve everyday usability.

Cons of the LiftMaster 98022

• Higher initial cost in some markets New stock usually carries a modest premium over any remaining 8500W units that still surface in clearance. The difference is rarely dramatic, yet it can feel noticeable if you are working with a tight budget.
• Requires a well-balanced torsion-spring door Like every jackshaft opener, the unit will struggle or wear prematurely if the door is out of balance. You must address spring tension and track alignment before installation, which can add an extra service call if the door has been neglected.
• Learning curve for first-time wall-mount owners If you have only owned traditional rail openers, the side-mount concept and the direct connection to the torsion bar take a short period of adjustment. The installation instructions are clear, yet the physical layout feels different until you grow used to it.

Also Read: Differences Between Belt And Chain Garage Door Openers.

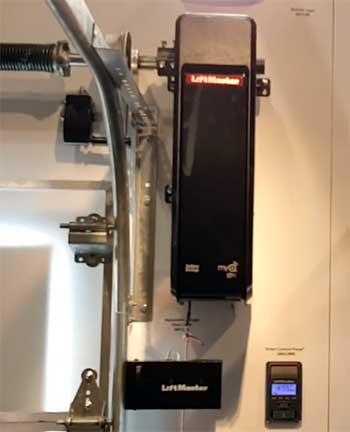

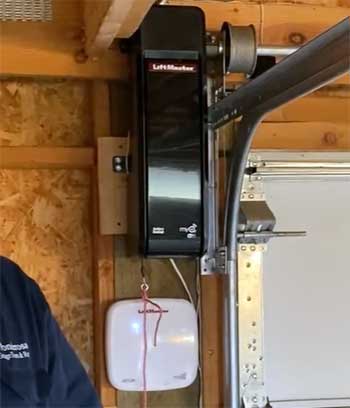

Key Features of The LiftMaster 8500W

• Wall-mount jackshaft design Exactly the same space-saving layout as the newer model. Ceiling remains open and the unit mounts on either side of the door.
• Quiet 12V DC motor The motor itself is essentially the same hardware. Soft start, soft stop, and low vibration were already strong points on the 8500W.
• Integrated battery backup Power-outage protection was already standard. The battery capacity and behavior match what you get on the 98022.
• Built-in Wi-Fi and myQ Smartphone control, alerts, and scheduling worked the same way. The missing Bluetooth simply made the initial connection a little slower.
• Automatic garage door lock The mechanical deadbolt was already included and performed identically.
• External cable tension monitor This extra sensor watched the lift cables and could reverse the door if it sensed slack. In practice it sometimes reacted to normal door movement and created unnecessary service calls.
• Remote LED light and smart control panel Lighting and wall-console features were already present and remain compatible with current accessories.

Pros of the LiftMaster 8500W

• Proven track record Thousands of these units have operated reliably for years in real homes. The core DC motor, battery backup behavior, and automatic lock were already solid long before the 98022 arrived. That history gives confidence that the fundamental engineering works.
• Full feature set when new Battery backup, built-in Wi-Fi, the mechanical deadbolt, and the remote LED light were all included from the start. Nothing essential was left as an optional add-on, so early owners received a complete package.
• Lower price on remaining inventory When leftover stock still appears, it often sells for less than a brand-new 98022. For buyers who find one in good condition and accept the discontinued status, the savings can offset the lack of newer refinements.

Cons of the LiftMaster 8500W

• Discontinued status Production has ended, so new units are increasingly hard to locate. Over time, replacement parts and specialized accessories will become scarcer compared with the actively supported 98022.
• External cable tension monitor issues The extra sensor occasionally triggered unnecessary reverses on windy days or after minor door settling. Many owners and technicians viewed that component as more trouble than it was worth, which is exactly why LiftMaster removed it on the replacement model.
• Older design language The bulkier housing and red accent pieces look dated next to the cleaner 98022. In a finished or frequently used garage the visual difference is noticeable every time the door opens.
• No Bluetooth Initial Wi-Fi setup required a few extra steps and a bit more patience. The connection worked once established, yet the process felt less modern than the Bluetooth-assisted pairing on the 98022.

Also Read: Differences Between Genie And Chamberlain Garage Door Openers.

Performance and Ownership Experience

I have watched both models operate in attached two-car garages, detached workshops, and homes with bedrooms directly above the garage.

Noise levels are nearly identical once the door is balanced.

The wall-mount placement itself removes most of the vibration that ceiling-mounted openers transmit into the house structure.

Soft-start and soft-stop behavior keeps the door from slamming or jerking, which protects both the door sections and the opener gears over time.

Battery backup is the feature owners mention most after the first power outage.

Being able to open the door and get the car out without hunting for the manual release in the dark changes how secure the garage feels.

The automatic lock adds another layer that standard rail openers simply cannot match; once the door is closed it is mechanically deadbolted.

Smart features work reliably once the myQ account is set up. Alerts arrive quickly, and temporary guest access is genuinely useful for package deliveries or service technicians.

The remote LED light is brighter than most built-in opener lights and can be placed where it actually helps rather than where the rail happens to sit.

Installation on either model is best left to a technician who understands torsion-spring systems. The opener itself mounts quickly, yet the door must be properly balanced first. An out-of-balance door will wear either unit faster and can cause the auto-force sensing to misbehave.

Who Should Choose Which Model?

If you are buying new today, the 98022 is the clear practical choice. It is the supported model, the installation is cleaner, and the small refinements add up over years of daily use.

The only reason to consider an 8500W is if you find one at a steep discount and accept that it is an end-of-life product. Even then, most owners eventually wish they had started with the current version.

Both units demand a torsion-spring door in good condition. If your door uses extension springs or is severely out of balance, neither opener is the right starting point. Fix the door first, then choose the opener.

Also Read: Problems With Jackshaft Garage Door Opener.

Frequently Asked Questions (FAQ)

Final Thoughts

After living with both designs through multiple seasons and power events, I am convinced the 98022 is the smarter long-term purchase for almost every homeowner.

You get the space-saving wall-mount advantages that made the 8500W popular, plus the refinements that remove the small headaches owners used to complain about.

Choose the 98022, have the door balanced correctly, and you will have a quiet, secure, and convenient garage entry for many years.

If you still have questions about your specific door height or spring type, measure carefully and match the opener to the real conditions in your garage rather than the brochure numbers alone.
